Australia Standard Portable Cattle Corrals 6 Rails 1.8×2.1M For Farm Animals Raising
Description:
-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.
-Complete with Caps & Foot plates.
-Holes for ground pin on one leg of each panel.
-Elongated lug holes in brackets, for ease when connecting.
-All hardware including hinges, bolt hook, chain and nuts & bolts are galvanized.
-Our Pens are the choice for strength, safety and durability
Features & Benefits:
1. Hot-dip galvanization eliminating rust and dramatically increasing fence life.
2. A wide range of specifications.
3. Available for many a application besides horse panel fence.
4. Galvanization after welding.
5. Sturdy welded rod construction.
6. Staple to wood posts or welded to steel posts.
7. No burrs existed.

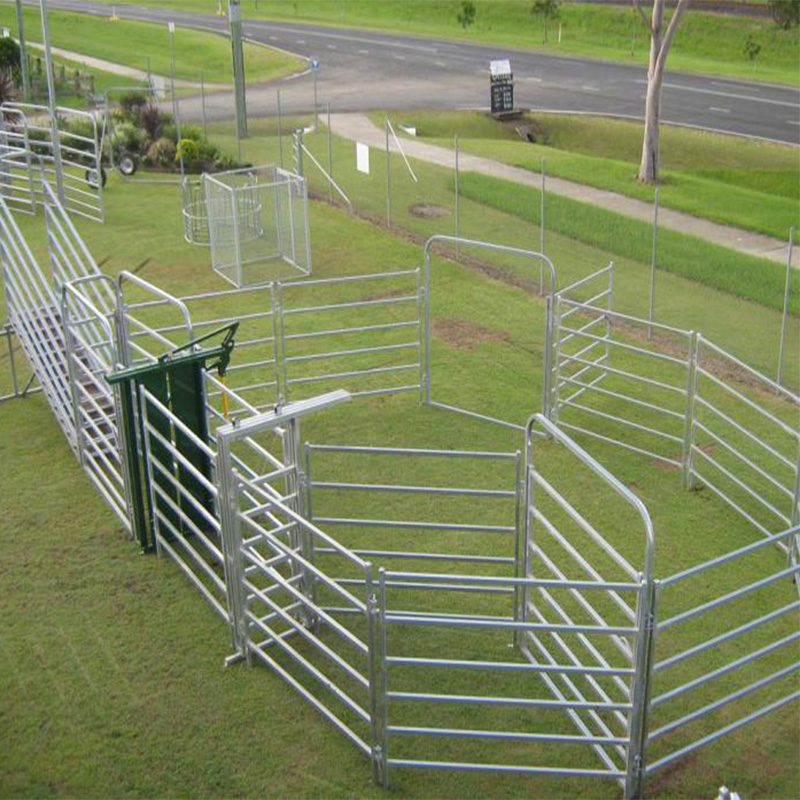

The details pictures of the cattle yard panel:
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
We also produce welded wire fence, canada temporary fence, australia temporary fence, chain link fence, palisade fence , crowd control barrier ,steel fence , fence gate
Most of our product are for export, well sold in the USA, Germany, Europe, Canada and other countries and regions. Our experienced staff can produce wire mesh processed products according to our customers’ demands.
