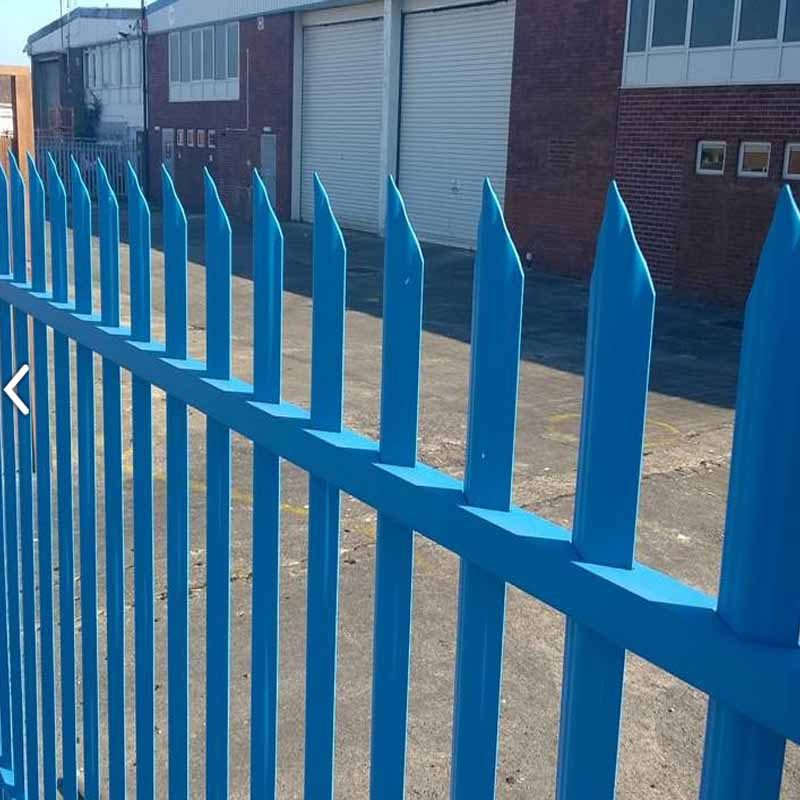

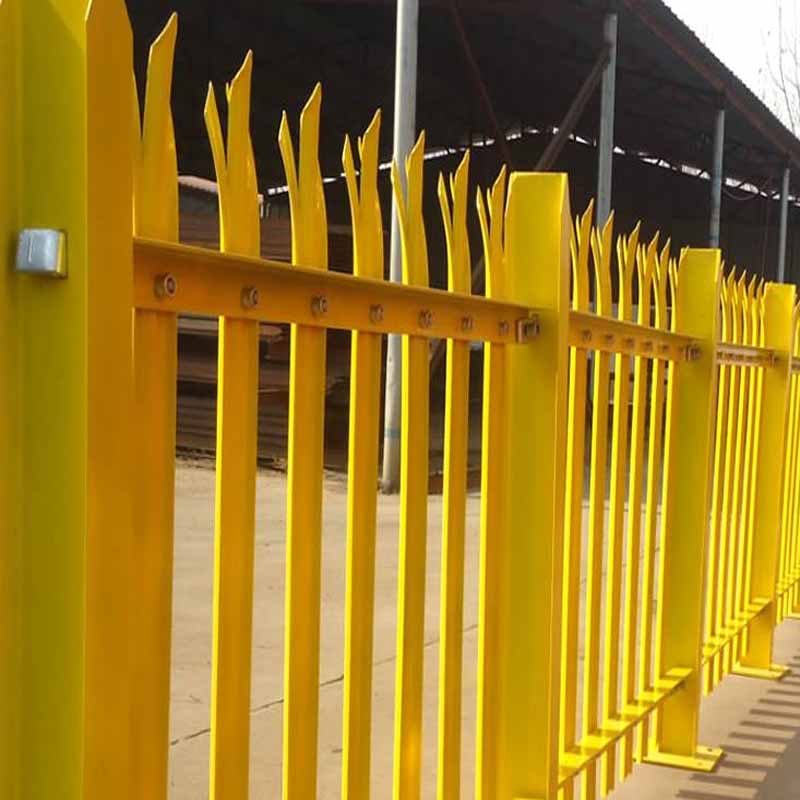

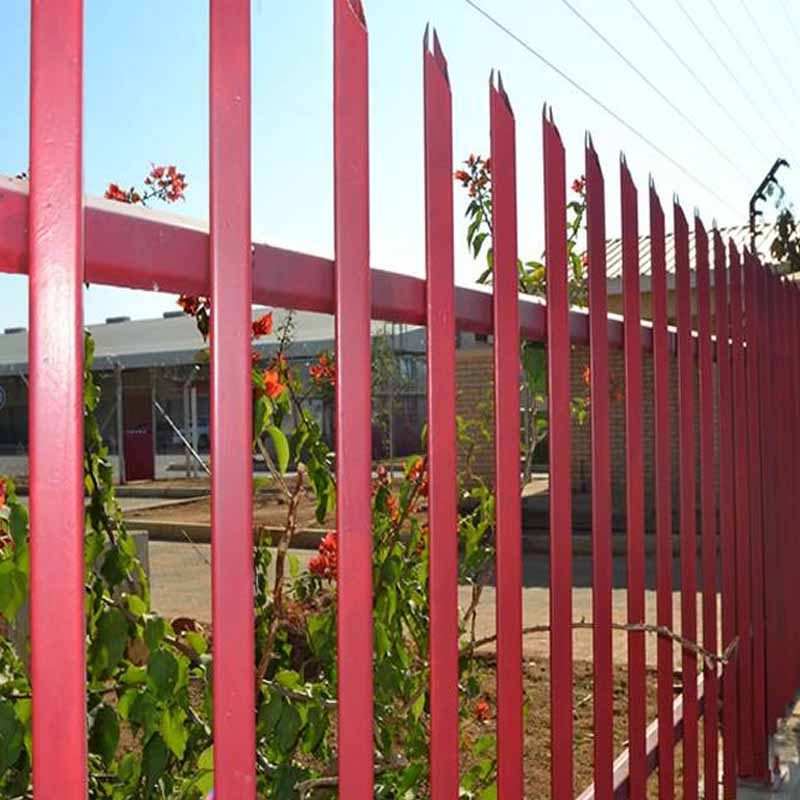

Palisade Fencing with Angle Pale or Corrugated Pale
Palisade fencing also called devils fork fencing can be divided into general palisade fencing and security palisade fencing according to the different specifications. General palisade fencing is shorter than security palisade fencing, which has angle type and corrugated type; but security palisade fencing has only corrugated type. With high strength, sharp prongs and narrow pale spacing, the steel palisade fencing can achieve high level of security to prevent intruders. It’s widely used for church fencing, residence fencing, factory fencing, road fencing and so on. For higher security level, palisade fence may be used with razor concertina wire coil on topping. ..
Feature
- High strength and damage resistance.
- Good security, sharp prongs threaten intruders.
- Various colors for perfect aesthetic effect.
- Easy installation and maintenance.
- Durable and long service life.
Specification
-
Material : Low carbon steel, stainless steel.
-
Surface treatment : Galvanized, powder coated.
-
Common color : White, black, green, yellow, blue.
-
Fence panel length (post center) : 2.75 m.
-
Maximum pale spacing : 155 mm for corrugated pales; 135 mm for angle pales.
-
Fence gate : Single leaf gate or double leaves gate.
-
Accessories : Fish plates, post clamps, post bracket, bolts and nuts.
| Item | Fence Height Above Ground (m) |
Posts | Horizontal Rails (Rolled Steel Angle Section) (mm) |
Pales | Type | ||
|---|---|---|---|---|---|---|---|
| Rolled Steel Joist Section (mm) |
Embedded Length (mm) |
Angle (mm) |
Corrugated Sheet Thickness (mm) |
||||
| GPF-01 | 1.5 | 102 × 44 | 525 | 40 × 40 × 4 | 40 × 40 × 5 | see table 2 | general palisade fencing |
| GPF-02 | 1.8 | 102 × 44 | 525 | 40 × 40 × 4 | 40 × 40 × 5 | ||
| GPF-03 | 2.1 | 102 × 44 | 625 | 45 × 45 × 4 | 40 × 40 × 5 | ||
| GPF-04 | 2.4 | 102 × 44 | 725 | 45 × 45 × 4 | 40 × 40 × 5 | ||
| SPF-01 | 3.0 | 127 × 76 | 925 | 50 × 50 × 6 | – | see table 2 | security palisade fencing |
| SPF-02 | 3.6 | 127 × 76 | 1125 | 75 × 50 × 6 | – | ||
| Item | Pale Profile | Type | Thickness (mm) |
|---|---|---|---|
| PFP-01 | corrugated “W” section | general palisade fencing | 2.5 |
| security palisade fencing | 3.0 | ||
| PFP-02 | corrugated “D” section | general palisade fencing | 3.0 |
| security palisade fencing | 3.9 |
