Steel Fiber Reinforcement concrete
- Material: High Quality Wire
- Diameter: 0.50mm, 0.55mm, 0.75mm, 0.90mm, 1.00mm
- Packing: 20kgs / 1.25 T / bag, Bulk Bag

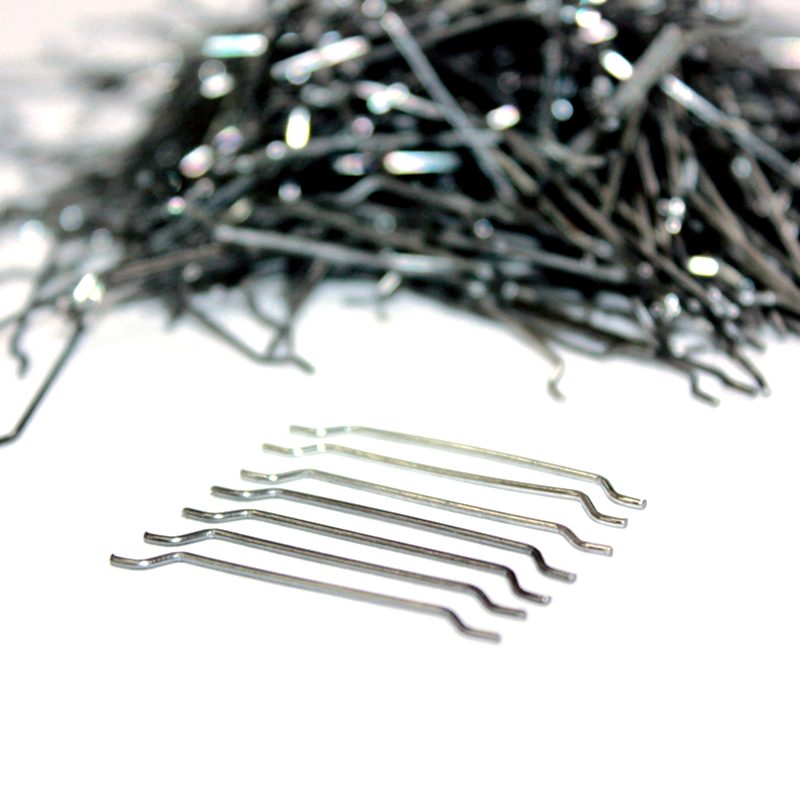

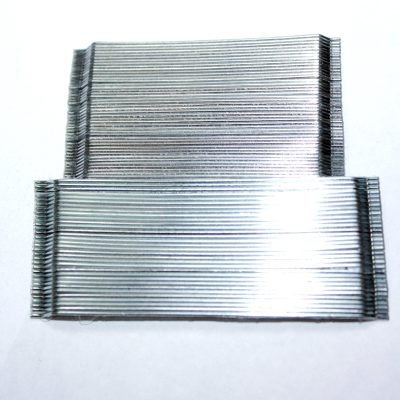

- Type: end of Loose end Hook, Hook attached, dumbbell shaped Fiber
- More popular Hook Loose end

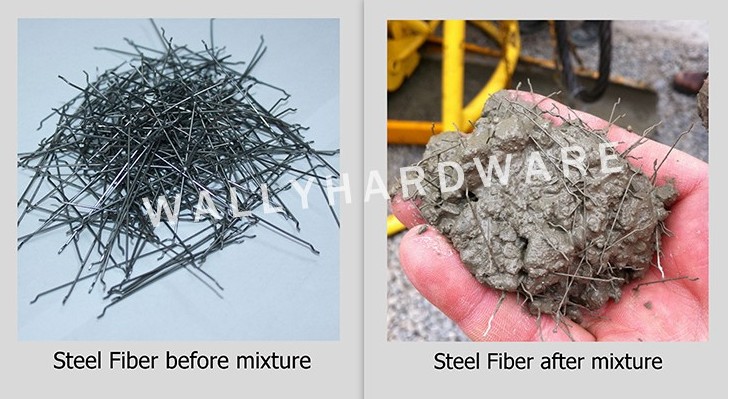

Today, many of the large Commercial developments at the edge of the City, Commercial blocks and Distribution warehouses have Forged (ground and mezzanine slabs) built with structure of Concrete containing Steel fibres. These are often added to the Mixer truck at the site (via a Conveyor or blasting machine) along with a generous addition of Super plasticizer to provide the necessary feasibility for it.
Fiber doses are typically in the range of 30 to 40 kg / m sup3;. Usually cost around & Pound; 1 to & Pound; 1.25 per kg, the addition of Steel Fibers to the concrete treated with quite expensive. However, compared with the cost of the purchase of conventional steel reinforcing Mesh and the associated Storage, Cutting, placement, etc, which usually turns out to be a very competitive price for the contractor and / or the client.
|
Product |
Diameter |
Length |
Aspect Ratio |
Type |
Packing |
|
G-6030 |
0.5 mm |
30 mm |
60 |
Glued |
20 kg/Bag, or 1,000kg/ Bulk Bag |
|
G-6535 |
0.55 mm |
35 mm |
65 |
Glued |
20 kg/Bag, or 1,000kg/ Bulk Bag |
|
G-6035 |
0.6 mm |
35 mm |
60 |
Glued |
20 kg/Bag, or 1,000kg/ Bulk Bag |
|
G-8060 |
0.75 mm |
60 mm |
80 |
Glued |
20 kg/Bag, 50 bags/Pallet |
|
G-6060 |
0.9 mm |
60 mm |
60 |
Glued |
20 kg/Bag, 50 bags/Pallet |
|
L-6030 |
0.5 mm |
30 mm |
60 |
Loose |
20 kg/Bag, or 1,000kg/ Bulk Bag |
|
L-6535 |
0.55 mm |
35 mm |
65 |
Loose |
20 kg/Bag, or 1,000kg/ Bulk Bag |
|
L-6035 |
0.6 mm |
35 mm |
60 |
Loose |
20 kg/Bag, or 1,000kg/ Bulk Bag |
|
L-8060 |
0.75 mm |
60 mm |
80 |
Loose |
20 kg/Bag, 50 bags/Pallet |
|
L-6060 |
0.9 mm |
60 mm |
60 |
Loose |
20 kg/Bag, 50 bags/Pallet |
Characteristics
* Uniform Distribution
* strength of not less than 1000 MPa
* High Range Resistance due to Hooked on bonging away
* Economic
* good water solubility of glued with Steel Fibers
Advantages of Steel fiber reinforced concrete
* Improved resistance to fatigue and Impact Resistance
* Improved Seismic Resistance and durability
* reducing the Fragility and Tenacity Enhanced
* increase the flexural and Shear Strength
* Uniform distribution of bonding with Steel Fibers and easy to mix
* more profitable due to the reduction of the thickness of Concrete compared with
The conventional concrete.
* most economic and efficient due to the ease of Construction.
Packaging & Shipping
Packing: by bulk or pallet.
